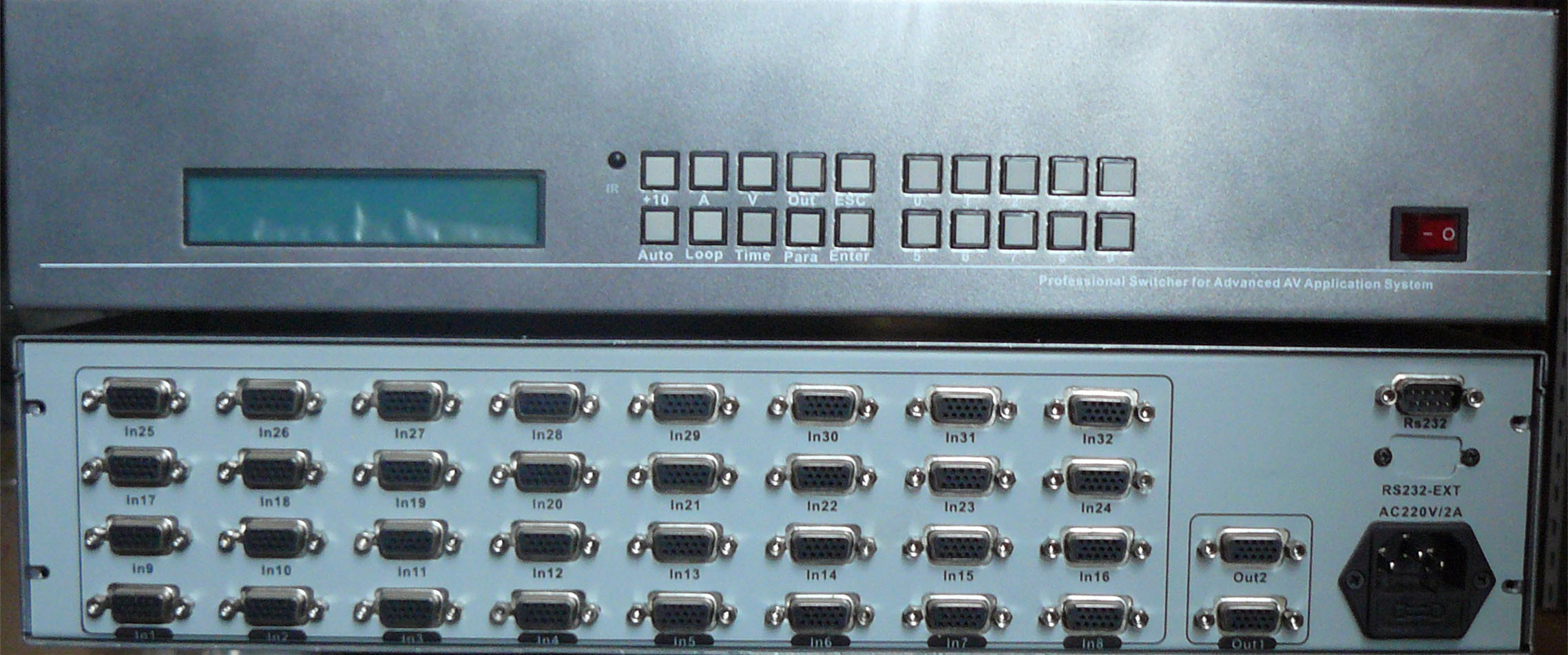

SG-322
VGA Switcher
l Support thirty-two in to be routed two out
l Support RGBHV、RGBS、RGB、RsGB、RGsB and RGBs video
l 250M Hz@-3dB video bandwidth, at fully loaded
l Buffered and amplified out
l The cable length can run up to 130feet (40 meters) or more at 800×600×60
l Support panel，RS232 or IR
l Support auto switch by signal input
l Support to routed someone input priority when this input has signal in
l Support auto loop switch out to every input channel one by one
l Support menu work mod
l Support user selected loop time from 1 to 99
l Support select different baundrate
l Supports the general ASCII protocol and the Forthgoer’s HEX protocol
l 2U280 metal enclosure
l AC 180～240V supply |
|
|
| 32 in 2 out VGA switcher |
|
 |
| Zoom |
|
|
|
| Parameter |
|
|
【RGB】 |
|
|
＊ |
Input/Output： |
thirty-two in and two out |
|
|
＊ |
Signal： |
RGBHV, RGBS, RGB, RsGB, RGsB and RGBs |
|
|
＊ |
Input Level(No offset) ： |
0.4 VP-P～2.0 VP-P typical 1VP-P |
|
|
＊ |
Coupling： |
DC coupling |
|
|
＊ |
Gain： |
0dB |
|
|
＊ |
Bandwidth： |
>250M Hz @-3dB |
|
|
＊ |
Impedance： |
75 Ω±1Ω |
|
|
【HV】 |
|
|
＊ |
Input/Output： |
thirty-two in and two out |
|
|
＊ |
Input Level： |
TTL |
|
|
＊ |
Input Impedance： |
High impedance |
|
|
＊ |
Output Impedance： |
51Ω±1Ω |
|
|
【Other】 |
|
|
＊ |
Inport connector： |
DB15 Female |
|
|
＊ |
Outport connector： |
DB15 Female |
|
|
＊ |
IR remote distance： |
15 meters (no covering) |
|
＊ |
Serial port connector： |
DB9 Male (2 = TX, 3 = RX, 5 = GND) |
|
＊ |
Baud rate (b/s) ： |
Supports 1200,2400,4800,9600 or 19200 |
|
＊ |
Serial protocol： |
8 data bits, 1 stop bit, no parity |
|
＊ |
Command protocol： |
The compatible ASCII or the Forthgoer protocol |
|
＊ |
Supply： |
AC180～240V 50Hz |
|
|
＊ |
Power： |
<10W |
|
|
＊ |
Operate temperature： |
0°C～40°C |
|
|
＊ |
Store temperature： |
-20°C～85°C |
|
|
＊ |
Enclosure dimensions： |
480mm × 280mm × 86mm |
|
|
|
|
