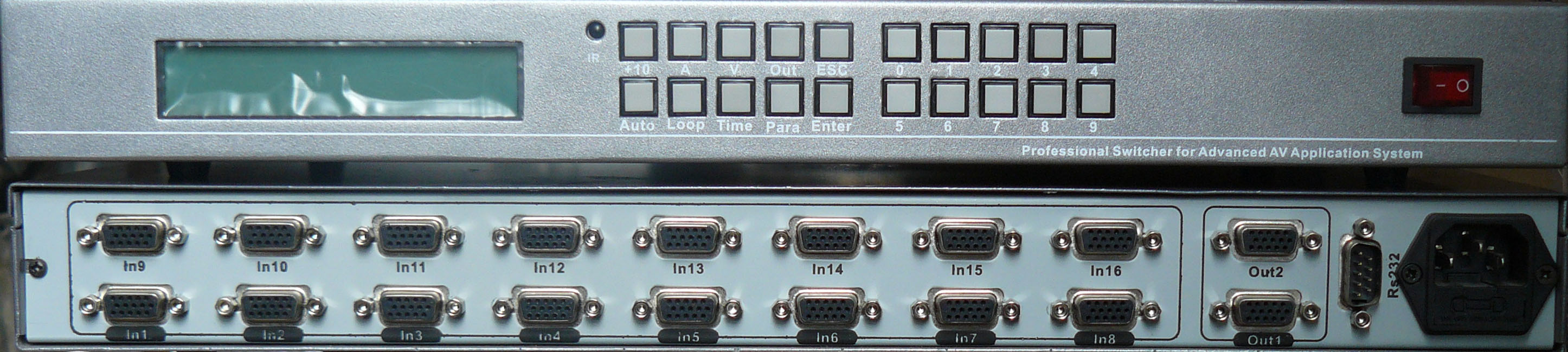

【RGB】 |
|
|
＊ |
Input/Output： |
Sixteen in and one with two distribution out |
|
|
＊ |
Signal： |
RGBHV, RGBS, RGB, RsGB, RGsB and RGBs |
|
|
＊ |
Input Level(No offset) ： |
0.4 VP-P～2.0 VP-P typical 1VP-P |
|
|
＊ |
Coupling： |
DC coupling |
|
|
＊ |
Gain： |
0dB |
|
|
＊ |
Bandwidth： |
>250M Hz @-3dB |
|
|
＊ |
Impedance： |
75 Ω±1Ω |
|
|
【HV】 |
|
|
＊ |
Input/Output： |
Sixteen in and one with two distribution out |
|
|
＊ |
Input Level： |
TTL |
|
|
＊ |
Input Impedance： |
High impedance |
|
|
＊ |
Output Impedance： |
51Ω±1Ω |
|
|
【Other】 |
|
|
＊ |
Inport /Outport connector： |
DB15 Female |
|
|
＊ |
IR remote distance： |
15 meters (no covering) |
|
＊ |
Serial port connector： |
DB9 Male (2 = TX, 3 = RX, 5 = GND) |
|
＊ |
Baud rate (b/s) ： |
Supports 1200,2400,4800,9600 or 19200 |
|
＊ |
Serial protocol： |
8 data bits, 1 stop bit, no parity |
|
＊ |
Command protocol： |
The compatible ASCII or the Forthgoer protocol |
|
＊ |
Supply / Power： |
AC180～240V 50Hz /<10W |
|
|
＊ |
Operate / Store temperature： |
0°C～40°C/-20°C～85°C |
|
|
＊ |
Enclosure dimensions： |
480mm × 280mm × 44mm |
