SD-22
DVI Switcher
l Supports two in to be routed two out
l Supports single link DVI-D signals for DVI1.0 standard of DDWG, the max resolution up to 1920x1200 x60
l The clock rate from 25M to 170M
l Adaptive input equalization, the cable up to 130 feet (40 meters) @ 1920×1200×60
l Out 1 support for switching, Loop, auto and backup mode
l Supports reconfigur the EDID of in port
l Supports indicat the signal state of in port and the loaded state of outport
l Supports panel control, Rs232 remote control, IR remote control
l Supports the general ASCII protocol and the Forthgoer’s HEX protocol |
|
|

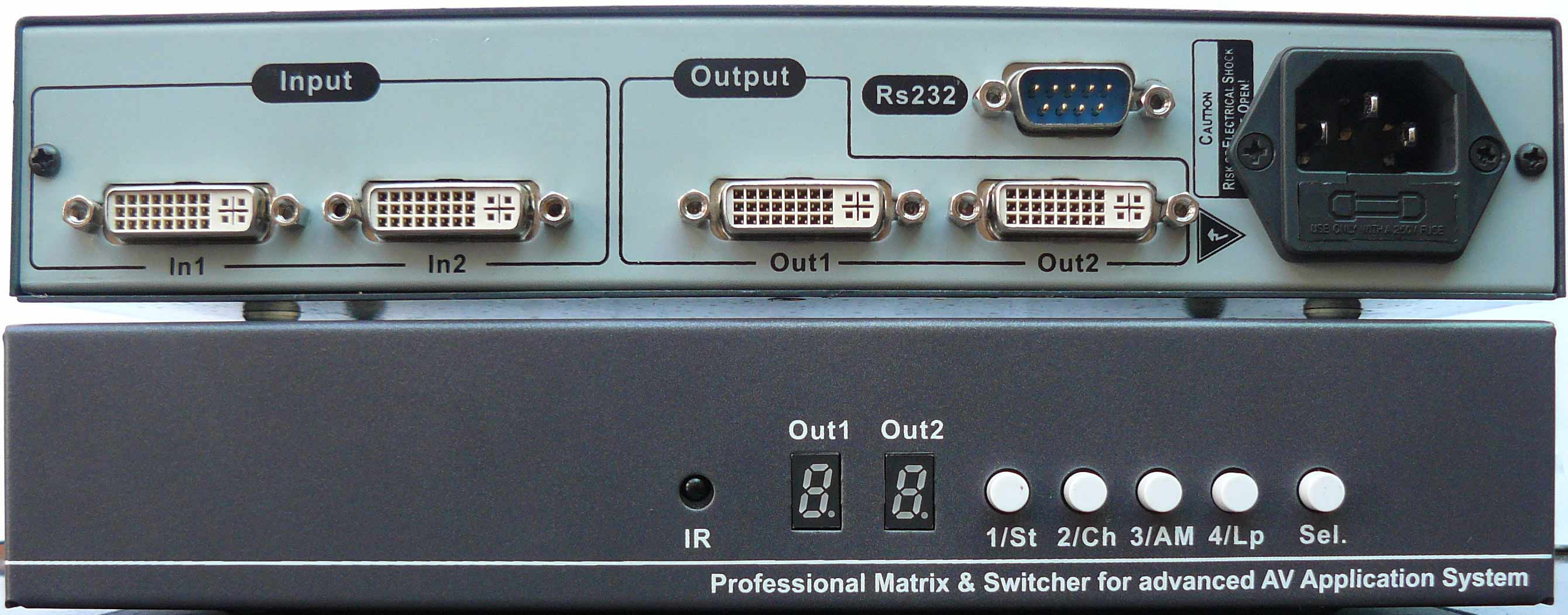

| 2 in 2 out DVI switcher |
|
 |
| Zoom |
|
|
|
| Parameter |
|
|
【DVI Channel】 |
|
＊ |
Input/Output： |
Two in and two out |
|
＊ |
Signal： |
Single link DVI-D |
|
＊ |
Max clock rate： |
170M Hz |
|
＊ |
Coupling： |
DC coupling |
|
＊ |
Max resolution： |
1920×1200×60 |
|
＊ |
Timing standard： |
DVI1.0 |
|
＊ |
Connector： |
DVI-I (only surport DVI-D signal) |
|
＊ |
Max length of Input cable： |
130 feet (40 meters) |
|
Note: The recieve distance varies greatly depending on the signal resolution and on the type of cable, graphic card, and display used in the system. |
|
【Other】 |
|
＊ |
IR remote distance |
15 meters (no covering) |
|
＊ |
Serial port connector |
DB9 Male (2 = TX, 3 = RX, 5 = GND) |
|
＊ |
Baud rate (b/s) |
Surports 1200、2400、4800、9600、19200、38400、43000、56000、57600、115200 |
|
＊ |
Serial protocol |
8 data bits, 1 stop bit, no parity |
|
＊ |
Command protocol |
The general ASCII or the Forthgoer’s HEX protocol |
|
＊ |
Supply： |
AC110～265V 47～63Hz |
|
＊ |
Power： |
<20W |
|
＊ |
Operate temperature： |
0°C～40°C |
|
＊ |
Store temperature： |
-20°C～85°C |
|
＊ |
Enclosure dimensions： |
240mm × 150mm × 44mm | |
|
|
