MV-48
Video Matrix

l  Support four in to be routed eight out
l  50M Hz@-3dB video bandwidth, at fully loaded
l  Buffered and amplified out
l  Support panel, Rs232, IR control
l  Support saved to or called from four status of prefab
l  Support select different baundrate
l  Supports the general ASCII protocol and the Forthgoer’s HEX protocol

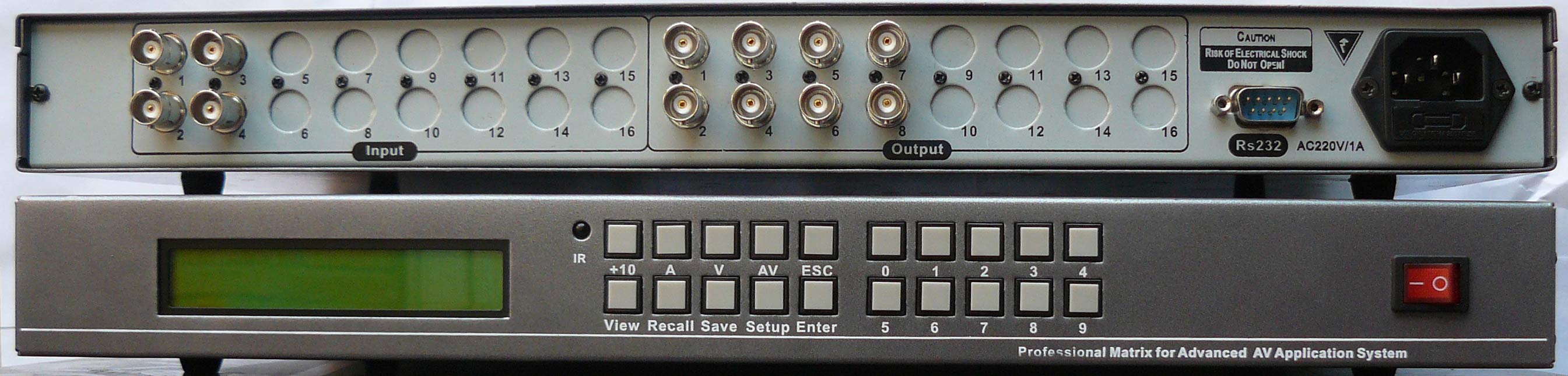

4 in 8 out video matrix
Zoom
Parameter

Video Channel

Input/Output

Four in and eight out

Signal

CVBS

Input Level(No offset)

0.4 VP-P2.0 VP-P  typical 1VP-P

Coupling

DC coupling

Gain

0dB

Bandwidth

50M Hz @-3dB

Impedance

75 Ω±1Ω

connector

BNC

Other

IR remote distance

15 meters (no covering)

Serial port connector

DB9 Male (2 = TX, 3 = RX, 5 = GND)

Baud rate (b/s) :

Surports 12002400480096001920038400430005600057600115200

Serial protocol

8 data bits, 1 stop bit, no parity

Command protocol

The general ASCII or the Forthgoer’s HEX protocol

Supply

AC180240V 50Hz

Power

<50W

Operate temperature

0°C40°C

Store temperature

-20°C85°C

Enclosure dimensions

480mm × 280mm × 44mm
