MGB-164
RGBHV Matrix
l Support sixteen in to be routed four out
l Support RGBHV、RGBS、RGB、RsGB、RGsB and RGBs
l 650M Hz@-3dB video bandwidth, at fully loaded
l Buffered and amplified out
l Support panel, Rs232, IR control
l Support saved to or called from four status of prefab
l Support select different baundrate
l Supports the general ASCII protocol and the Forthgoer’s HEX protocol |
|
|

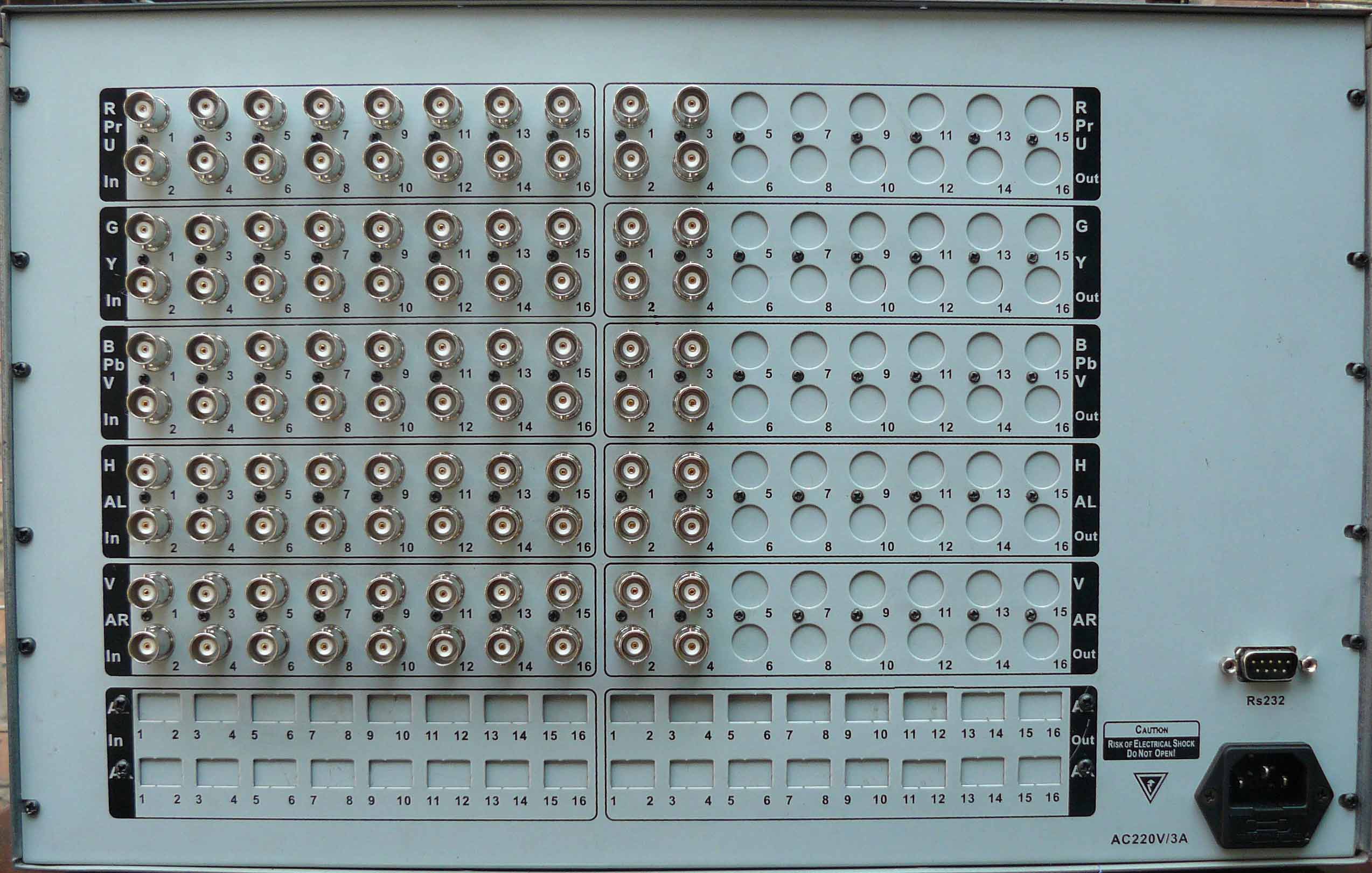

| 16 in 4 out HD RGBHV matrix |
|
 |
| Zoom |
|
|
|
| Parameter |
|
|
【RGBHV Channel】 |
|
＊ |
Input/Output： |
Sixteen in and four out |
|
＊ |
RGB Signal： |
RGBHV, RGBS, RGB, RsGB, RGsB and RGBs |
|
＊ |
RGB Input Level(No offset) ： |
0.4 VP-P～2.0 VP-P typical 1VP-P |
|
＊ |
RGB Coupling： |
DC coupling |
|
＊ |
RGB Gain： |
0dB |
|
＊ |
RGB Bandwidth： |
650M Hz @-3dB |
|
＊ |
RGB Impedance： |
75 Ω±1Ω |
|
＊ |
HV Input Level： |
TTL |
|
＊ |
HV Input/Output Impedance： |
High impedance/51Ω±1Ω |
|
＊ |
connector： |
BNC |
|
【Other】 |
|
＊ |
IR remote distance： |
15 meters (no covering) |
|
＊ |
Serial port connector： |
DB9 Male (2 = TX, 3 = RX, 5 = GND) |
|
＊ |
Baud rate (b/s) ： |
Surports 1200、2400、4800、9600、19200、38400、43000、56000、57600、115200 |
|
＊ |
Serial protocol： |
8 data bits, 1 stop bit, no parity |
|
＊ |
Command protocol： |
The general ASCII or the Forthgoer’s HEX protocol |
|
＊ |
Supply： |
AC180～240V 50Hz |
|
＊ |
Power： |
<100W |
|
＊ |
Operate temperature： |
0°C～40°C |
|
＊ |
Store temperature： |
-20°C～85°C |
|
＊ |
Enclosure dimensions： |
480mm × 350mm × 264mm | |
|
|
