ERD-N
DVI twisted pair wires extender
l Support one RJ45 in and one DVI out
l Supports single link DVI-D and HDMI signals
l Supports LED indicator for signal input
l The max resolution up to 1920x1200, including HDTV 1080p/60
l Supports CAT5E, CAT6 and CAT6E cable
l DC 5V/3A supply |
|
|

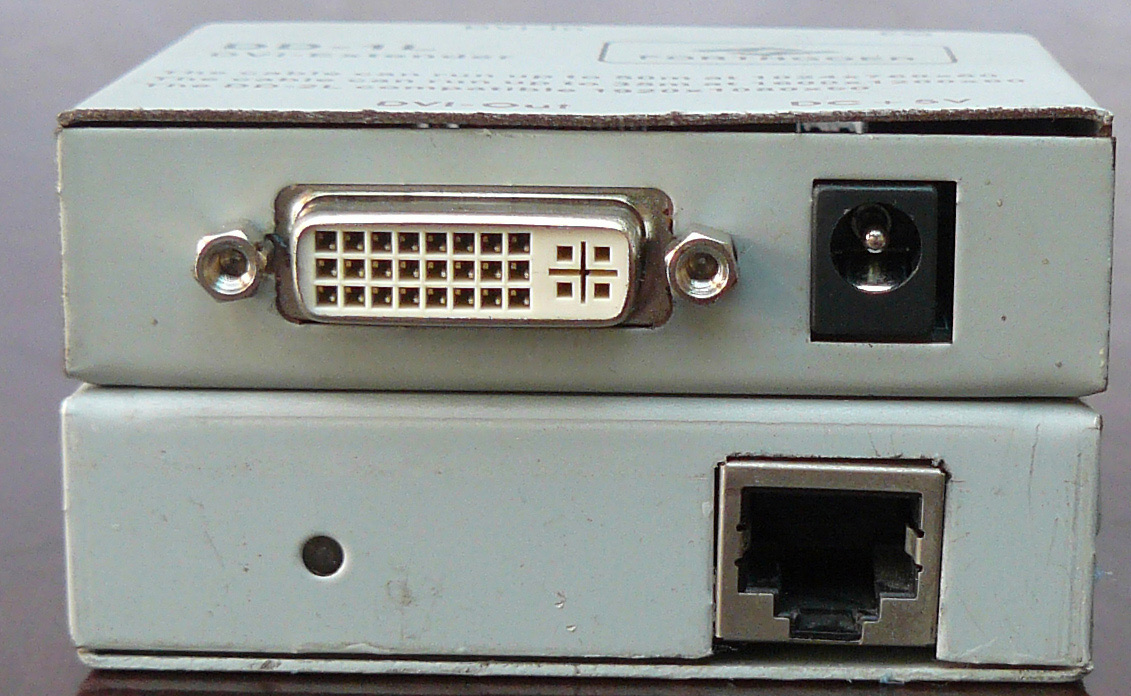

| DVI UTP extender |
|
 |
| Zoom |
|
|
|
| Parameter |
|
|
【Channel】 |
|
＊ |
Signal： |
TMDS, Support DVI-D and HDMI |
|
＊ |
Max clock rate： |
225M Hz |
|
＊ |
Coupling： |
DC coupling |
|
＊ |
Max resolution： |
1920×1200×60 |
|
＊ |
Input connector： |
RJ-45 |
|
＊ |
Output connector： |
DVI-I |
|
＊ |
Max length of CAT5E cable： |
60 meters @1024×768×60 |
|
|
|
45 meters @1280×1024×60 |
|
|
|
30 meters @1920×1200×60 |
|
＊ |
Max length of CAT6 cable： |
80 meters @1024×768×60 |
|
|
|
60 meters @1280×1024×60 |
|
|
|
40 meters @1920×1200×60 |
|
＊ |
Max length of CAT6E cable： |
100 meters @1024×768×60 |
|
|
|
80 meters @1280×1024×60 |
|
|
|
50 meters @1920×1200×60 |
|
Note: The recieve distance varies greatly depending on the signal resolution and on the type of cable, graphic card, and display used in the system. |
|
【Other】 |
|
＊ |
Supply： |
DC 5V/3A |
|
＊ |
Power： |
<10W |
|
＊ |
Operate temperature： |
0°C～40°C |
|
＊ |
Store temperature： |
-20°C～85°C |
|
＊ |
Enclosure dimensions： |
75mm × 60mm × 22mm | |
|
|
